multi-output power supplies

Branche

Onderwerp

Electromechanical components Industrial Electronics Passive components

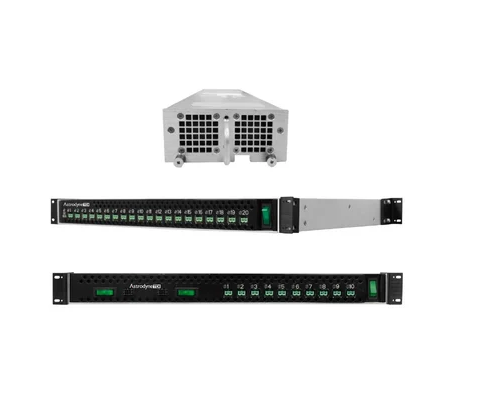

The new line of multi-output power supplies is designed with space in mind. The ASX and ASXMicro series feature a 1U rack mount configuration and meet a variety of medical and semiconductor industry standards including EN/IEC/UL60601-1 3rd Edition and SEMI F47-0706. This new design can deliver up to 1200W of regulated DC power through multiple outputs. The ASX series or the ASXMicro is the perfect power distribution solution for an organized environment where power is critical and safety is a top priority.

Main Features:

Output power up to 240W per output, 1,200W total
High Efficiency: up to 94% power conversion efficiency
Forced air-cooled
High Reliability: 100% HASS Tested
SEMI-F47 compliant and designed to NAVSO P-3641A
Successfully integrates into Semi S2 systems
AC or DC input
Full PFC – High Power Factor when operating from AC power – Low Input Current THD
Medical certified Modules – 2MOPP
