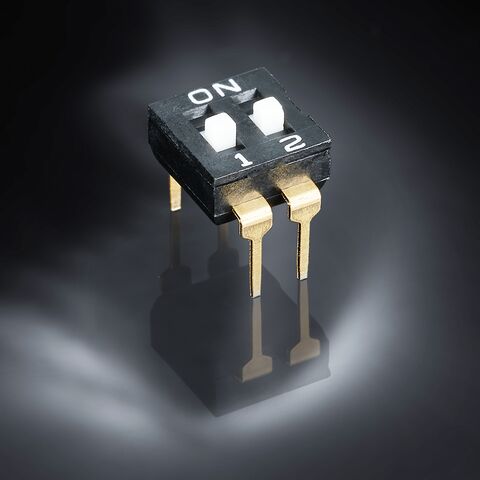

The DMTH series is a robust and cost-effective DIP switch designed for reliable manual configuration in industrial and electronic applications. With the industry-standard pitch of 2.54 mm and THT mounting technology, it offers excellent compatibility with existing PCB designs, while guaranteeing firm mechanical anchoring and solder reliability.
With up to 12 positions, SPST contacts, flush or raised operation, and a low profile of 3.6 mm, DMTH supports flexible system configurations without requiring additional PCB space. The switch is rated for up to 2,000 switching cycles and operates reliably at temperatures from -40 °C to +85 °C.
Applications
Typical applications include address settings, selection of communication protocols (e.g. RS-485, Modbus), function control, BIOS and hardware configuration, and parameter settings in medical equipment, HVAC systems, industrial controls, robotics, and consumer electronics. The combination of proven performance, a competitive price, and rapid availability makes the DMTH an ideal solution for OEMs seeking a reliable alternative to more expensive DIP switches.
