The FA5-220SXXG2D4 series is a compact 5 W AC-DC power supply designed for industrial, smart home, and power grid applications. It supports a wide input range of 85–305 VAC / 120–430 VDC and operates from -40°C to +85°C.
Features:
-
Power: 5 W
-
Input: 85–305 VAC / 120–430 VDC
-
Output options: 3.3 V, 5 V, 12 V, 12.5 V, 15 V, and 24 VDC
-
Efficiency: Up to 76% typical
-
No-load consumption: ≤0.25 W
-
Isolation: 4,000 VAC
-
Operating altitude: Up to 5,000 m
-
Protection: Short circuit and over-current
-
Size: 25.4 × 25.4 × 17.6 mm
-

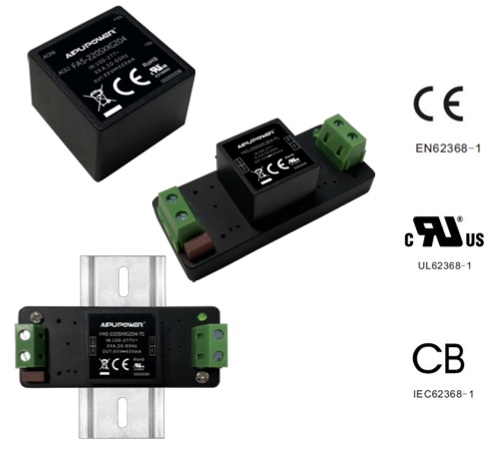

Mounting: PCB DIP, chassis mount (-T), or DIN-rail (-TS)
-
Compliance: IEC/EN/UL 62368
-
Certifications: TUV-CE, CB, and UL
