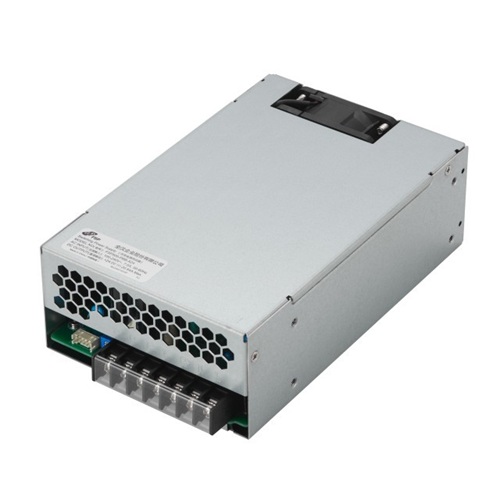

The FSP500-PBB is an AC-DC panel-mount switching power supply with a compact 190 × 120 × 61 mm design. It is a Class I power supply with protective earth and a built-in top-mounted fan. The series delivers 500 W of continuous power and up to 1,000 W of peak power at an operating temperature of 50°C. It is designed to meet IEC 62368-1 safety standards and is CSA 62368-1 certified. The FSP500-PBB is suitable for industrial control applications.
Features:
-
500 W continuous output with up to 1,000 W peak power at 50°C
-
Wide input range: 90–264 VAC with no power derating
-
Operating temperature: -20°C to 50°C
-
Compact design: 190 × 120 × 61 mm
-
Built-in fan for cooling
-
EMI performance: EN 55032 Class B emissions
-
Surge protection: ±2 kV differential and ±4 kV common mode
-
Safety: Designed to meet IEC 62368-1 and approved to CSA 62368-1
